Day Gates and Issue Ports
for Military, Government, Retail Businesses and Commercial Enterprises that Require Visual Security for Securely Handling Firearms, Money and Other Items in a Protected Pass Through Environment.

Day Gates and Issue Ports
For Military, Government, Retail Businesses and Commercial Enterprises that Require Visual Security for Securely Handling Firearms, Money and Other Items in a Protected Pass Through Environment.

Vault Doors and Safe Room doors made in USA

Day Gates and Issue Ports for Secure Pass Thru

Factory Direct Sales and Delivery!

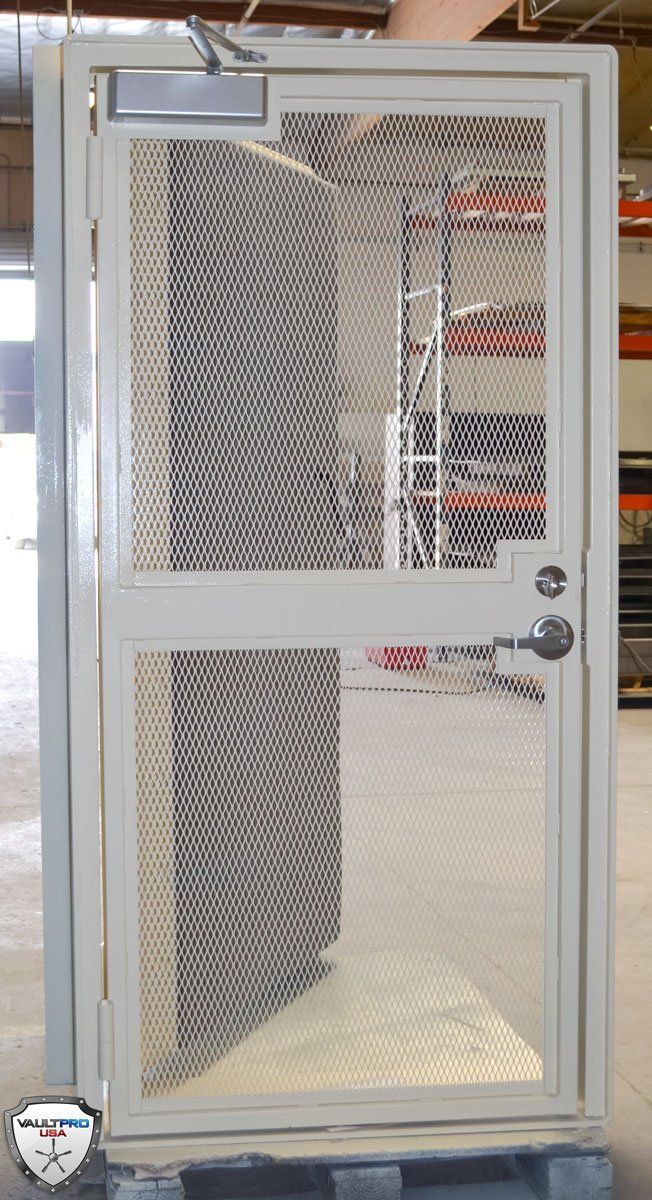

Day gates for secure pass thru in vault door rooms

Day Gates for Vault Door Installation

Issue Ports for Secure Pass Thru

We Are Day Gate for Vault Door Manufacturers.
Free Expert Advice - Call One of Our Vault Pro's

Day Gates

Day Gates for Vault Pro Vault Doors - Vault Pro Self Closing Day Gates are designed and built to be used exclusively with Vault Pro Atlas, Elite and Titan Series Vault Doors where visual security is required. Add a Day Gate to your vault door installation for added security.

Click images to enlarge.

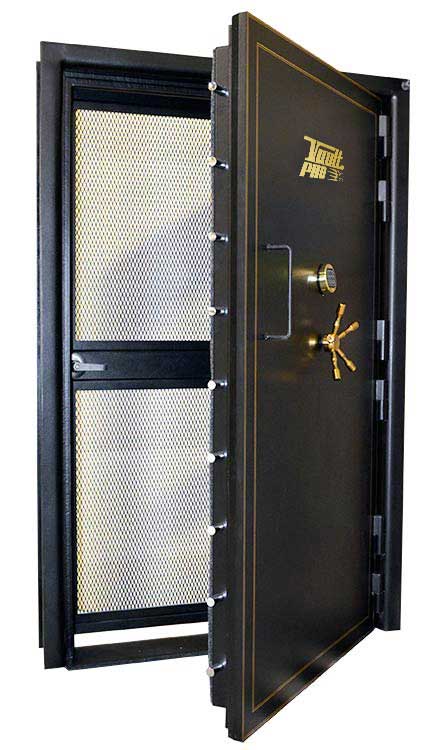

Day Gate on Vault Door
Button

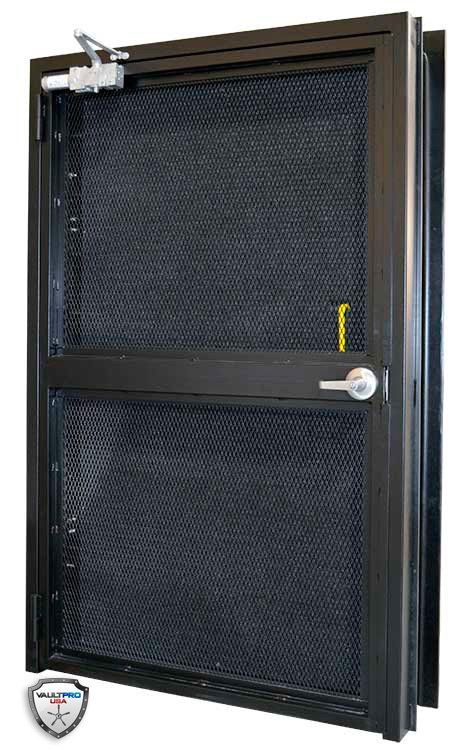

Day Gate Showing Automatic Closure
Button

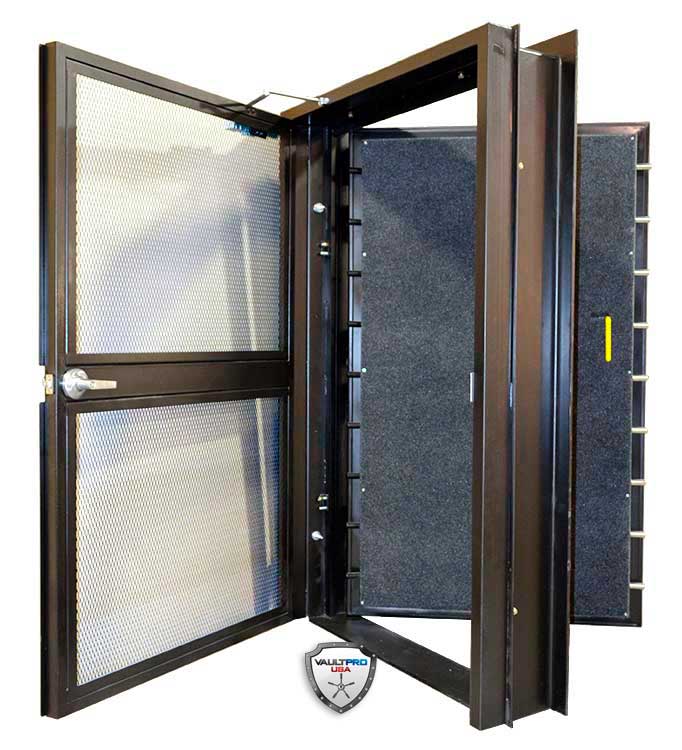

Day Gate Provides Added Visual Security
Button

Vault Pro has designed Day Gates to provide superior security, access control and visual ability where controlled substances, weapons, equipment and materials are stored and issued. All of Vault Pro’s Day Gates can be equipped with framed issue port hatches or pass thru.

Day Gates are in-swing and can be hinged on either side of the out swinging Vault Pro Vault Door. Vault Pro Day Gates are equipped with a group 2 locking device operable from inside by a handle and from the outside by key and will not interfere with the operation of the vault doors internal release or inner escape device.

Vault Pro Day Gates come in three standard sizes and custom sizes are available. Call one of our Vault Pro’s for details - CLICK TO CALL

Click images to enlarge.

Day Gate with locking handle and rotating locking latch.
Button

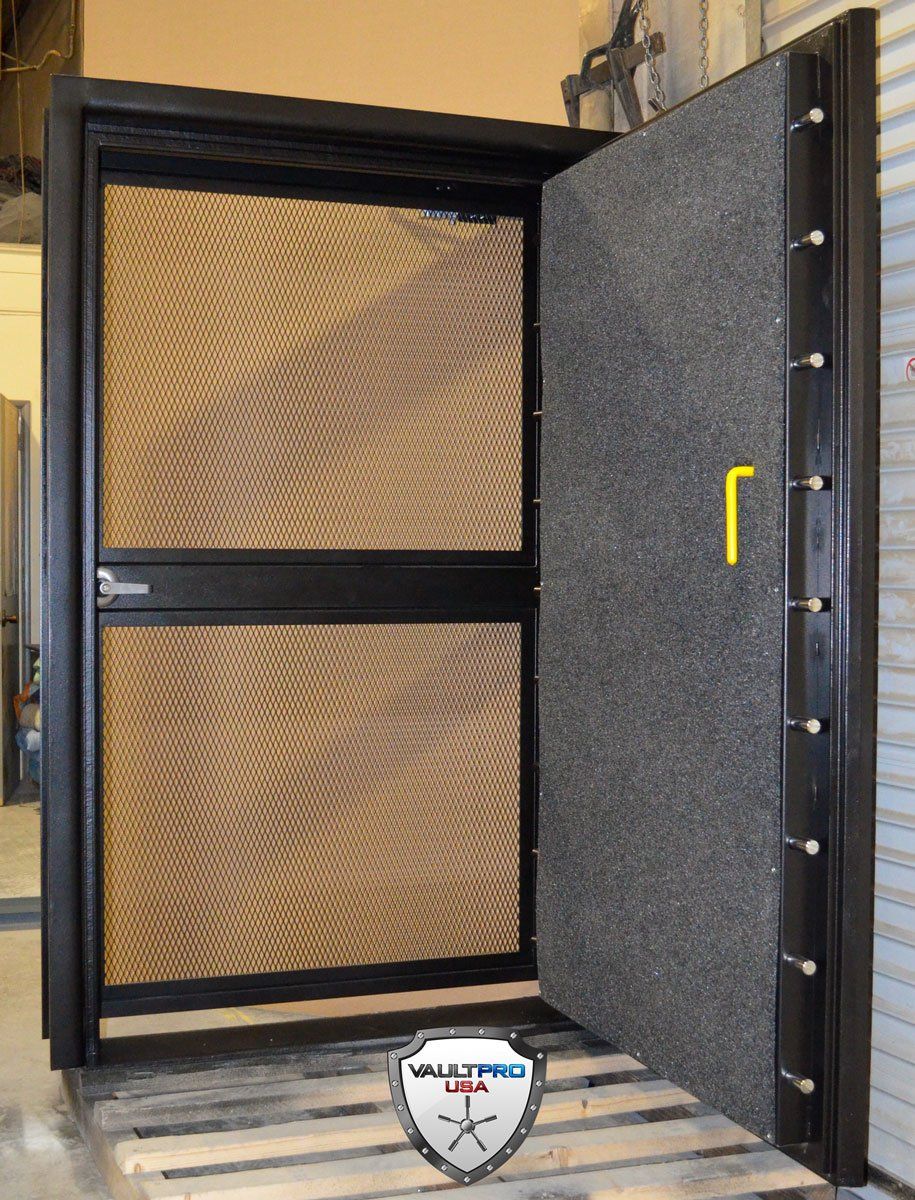

Day Gate on big vault door.
Button

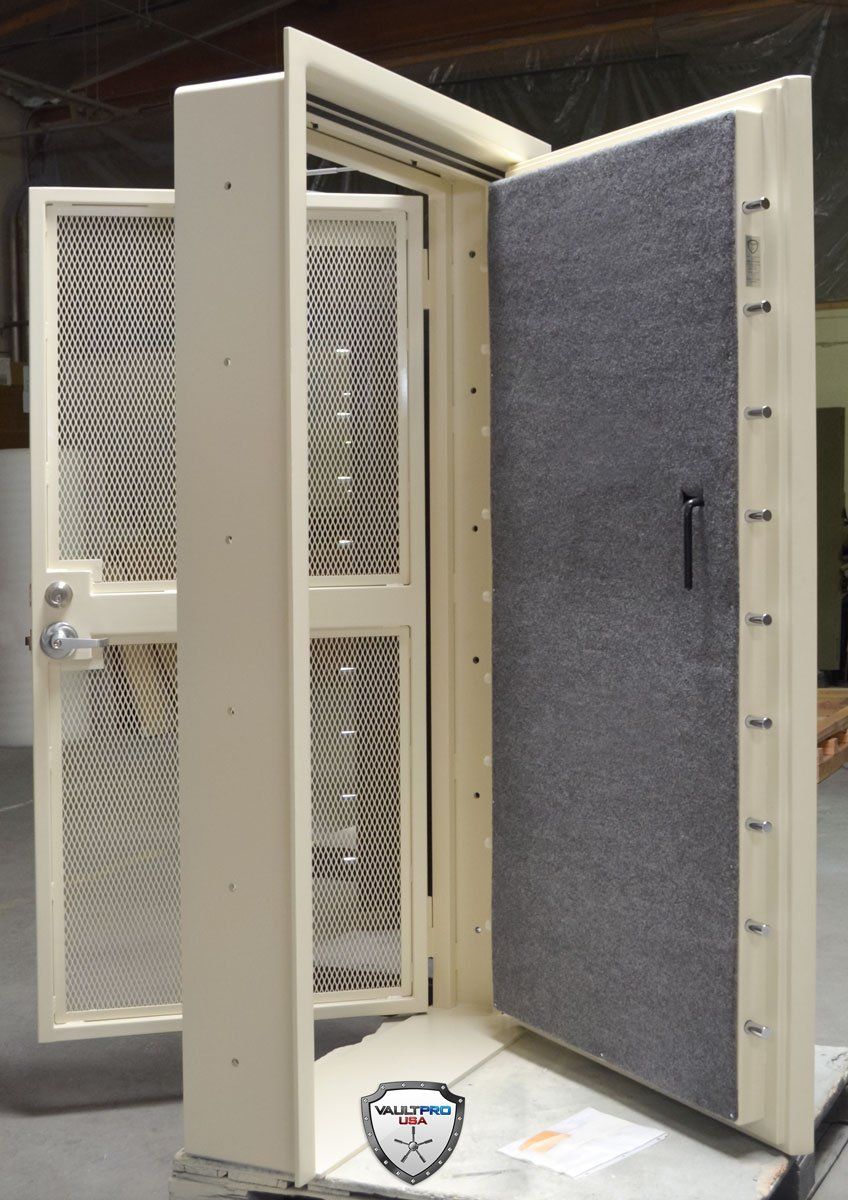

Day Gate mounted on heavy duty frame with vault door.
Button

Day Gate Standard Features

Heaviest Gauge Frames in the Industry
#16, ½” Flattened Expanded Metal
Day Gate Can be Hinged on Left or Right Side
Group 2 Lock Operable from Inside by a Handle and from the Outside by Key
Will Not Interfere with Operation of the Vault Door Internal Release or Inner Escape Device
Four Standard Sizes Fit Most Installations (Custom sizes available)
Paint Color to Match Vault Pro Door - Call for more information and Free Quote: CLICK TO CALL

Day Gates Factory Direct Pricing

Standard Day Gates available for all vault doors

80" x 30"

FACTORY DIRECT PRICE

$1870

80" x 35"

FACTORY DIRECT PRICE

$2099

80" x 40"

FACTORY DIRECT PRICE

$2355

80" x 45"

FACTORY DIRECT PRICE

$2599

Electric Strike for Day Gate (option): $399.00

CALL FOR FREE QUOTE

CLICK TO CALL (M-F 7AM-7PM)

CLICK FOR FREE QUOTE

Issue Ports for Secure: Military, Government and Industrial Use

Vault Pro Weapon’s Issue Ports for Government, Military and Business are ideal for access and passage of weapons, ammunition and classified material to users by an armorer or designated individual in charge of dispensing them through the secure issue port.

Vault Pro Issue Ports come in multiple configurations, including Inverted-T Style, and custom sizes are available. Call one of our Vault Pro’s for details - CLICK TO CALL

Issue ports for secure pass thru for military, government and industrial use

Issue Ports in Final Assembly and Inspection Area. Mesh type issue ports on the left. On the right, issue ports which will have ballistic level glass installed.

Click images in gallery below to enlarge.

Bolt in Place Issue Ports with front and rear facing views.
Button
Pour in place Issue Port seen from front showing Diamond Metal Mesh Viewing Window with Steel Bar Reinforcements.
Button
Issue Port mounted in concrete wall.
Button
These are the Inverted-T variant Issue Ports for Government, Military and Business, providing ideal secure access and passage of weapons, ammunition and classified material to users by an armorer or designated individual in charge of dispensing them through the secure issue port.
Button
When closed Issue Ports provide superior security against unauthorized access to firearms and sensitive materials.
Button
Inverted T-Style Issue Ports in closed and open positions. Can be customized to meet the most stringent standards of Government, Military and Industry.
Button
Issue Ports at final assembly and inspection prior to shipping.
Button
Bolt in place Issue Port with door closed.
Button
Pour in place Issue Port with door closed.
Button
Issue Ports in final assembly and inspection area. White ports on the left are mesh type. Brown issue ports on the right are designed for ballistic level glass, which will be added later.
Button
Issue Ports in final assembly and inspection area. Port doors closed.
Button
Issue Ports showing doors open. We manufacture all types and sizes of issue ports.
Button

Issue Port Standard Features

Description: Two Piece Weapons Issue Port, 37¼” x 19” x 20” depth including 8” flanged channel (steel with white textured finish).

Provides safe and easy weapons issue ability from secured location.

Features:

Made in the U.S.A.
Bolt in and Anchor in designs for easy installation.
Diamond Metal Mesh Viewing Window with Steel Bar Reinforcements.
Steel: 3-gauge (1/4”) steel frame construction.
Steel: ½” Plate Working Surface inside and out.
Steel Composite Door includes 3ea. layers of 10-gauge Steel & 2ea. layers of ¾” Plywood for ballistic resistance.
Dual Deployable Slide Hasp Locks (inside locking only)
Heavy Duty Ball Bearing Hinges with Hardened Hinge Pin.
Finish: Commercial Grade White Texture Finish
Warranty Five Years
