Heavy Duty American Made Vault Door

ELITE SERIES - Best in class fire protection

Image of American made vault doors for safe rooms and storm shelters. Vault doors made by Vault Pro USA

Superior Fire and Security Protection - Engineered to Exceed all ICC-500 and FEMA 320 & 361 Recommended Standards for Use in Storm & Tornado Shelters.

Vault Doors and Safe Room doors made in USA

Elite Series Vault Room Doors

Factory Direct Sales and Delivery!

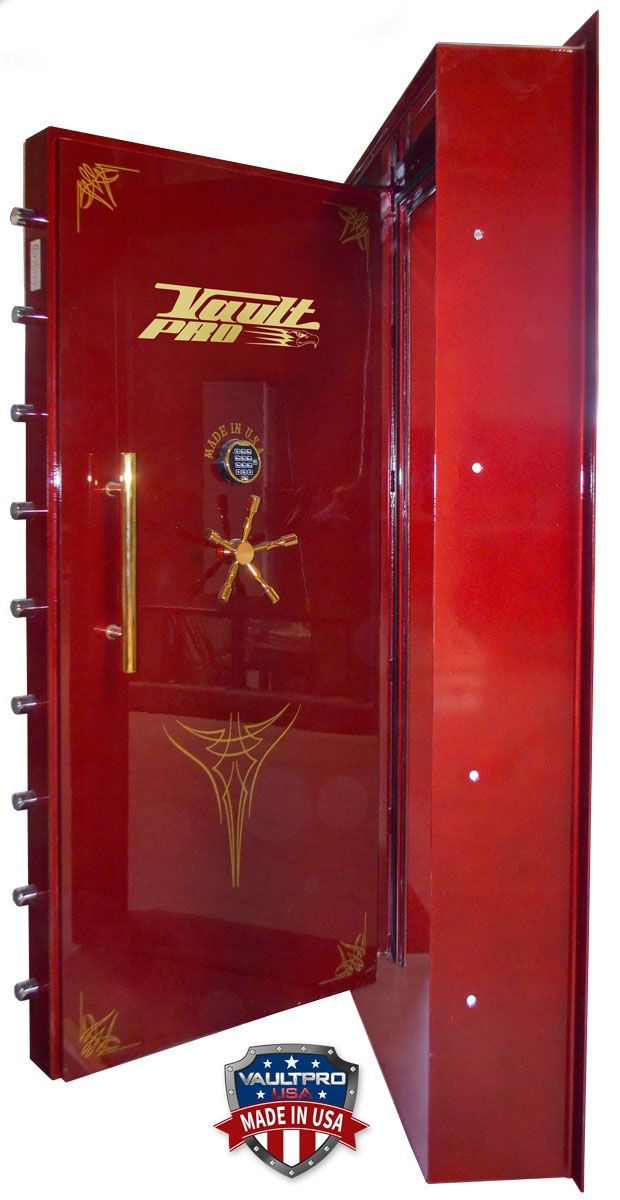

vault door with custom burgundy paint finish

Elite Series Vault Door

2" Step-System Door

(In-Swing version shown here)

Button

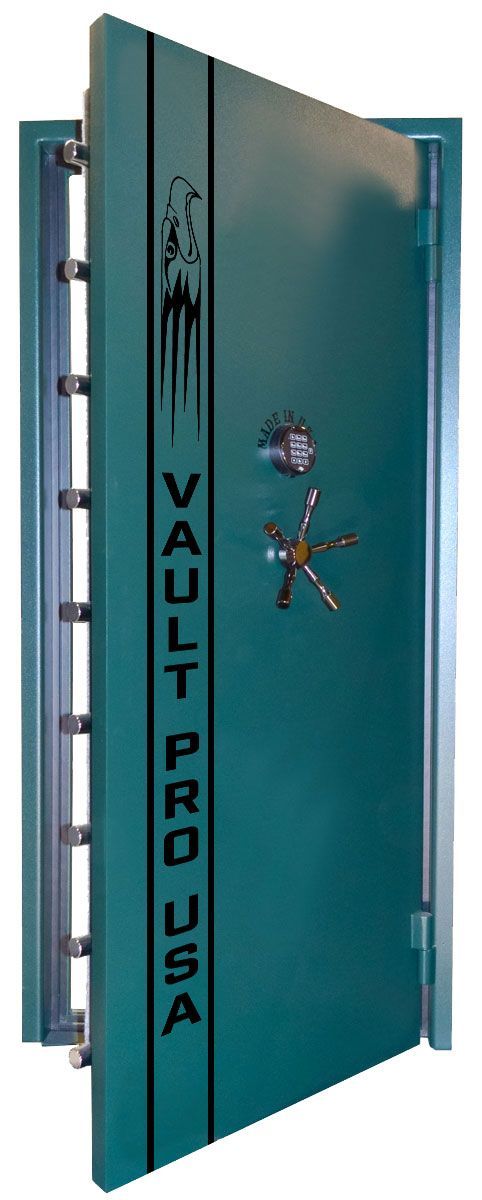

Heavy duty vault door made in America - Dark green exterior finish

Click images to enlarge

vault doors and shelter doors made in USA

Our Most Popular Model Vault Door

If you are looking for the best in class fire protection and the exceptional security only a 2” Step System Door and perfectly matched frame combination sealed against dual Palusol® gaskets can provide, than the Elite Series Vault Door is the door for you.

The Elite Series Vault Door is Vault Pro’s most popular vault door for a good reason…superior security and fire protection as well as a long list of standard features that include custom fit doors, multiple relockers, 2300° Ceramic Fire Blanket, choice of our most popular colors and hardware and an even longer list of available upgrades and custom options.

Vault Pro engineered the Elite Series Vault Door to exceed all ICC-500 and FEMA 320 & 361 recommended standards for use in storm & tornado shelters and as file room doors.

CALL FOR FREE QUOTE

CLICK TO CALL (M-F 7AM-7PM)

CLICK FOR FREE QUOTE

Free digital lock with any vault door purchase. Limited time offer.

Half off sale on vault door steel inner liners

*Special offers may not be combined. Special promotion ends March 31. Call for more information.

Vault Door Model Quick Comparison Chart

Model Detail Specifications

Model	Professional	Executive	Elite	Atlas	Titan	Monster
Door	1/4" Plate Steel	1" Composite Steel Door	2" Step System Door	2" Step System Door with 1/2" Solid Steel Front Plate	2" Step System Door with 1" Solid Steel Front Plate	7' x 5' 2" Solid Steel Stepped Door
Frame Thickness	1/4" Solid Steel	1/4" Solid Steel	1/4" Solid Steel	1/4" Solid Steel	1/2" Solid Steel Frame	1/2" Solid Steel Frame
Fire Rating	40 Minute	1 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket	2 Hour 2300° Ceramic Fire Blanket
Number of Locking Bolts	14 4" x 1" Locking Bolts. Active Bolts Fully Rotating	18 4" x 1" Locking Bolts. Active Bolts Fully Rotating	18 4" x 1½" Locking Bolts. Active Bolts Fully Rotating	4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating	4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating	4-Way 22-Bolt Locking System 4" x 1½" Locking Bolts. Active Bolts Fully Rotating
Lock Type	U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock	U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock	U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock	U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial	U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial	U.L. Listed Group 2 Gargent & Greenleaf, Spy-Proof Lock with Locking Dial
Hard Plate	1/4" Solid 60+ Rockwell Hard Plate	1/2" 60+ Rockwell Hard plate	1/2" 60+ Rockwell Hard plate	3/4" 60+ Rockwell Hard plate	1" 60+ Rockwell Hard plate	1" 60+ Rockwell Hard plate
Internal Release	Yes	Yes	Yes	Yes	Yes	Yes
Re-Locker	Dual Re-locker (including 1ea. Brass Arm & 1ea. Titan)	Triple Re-locker (Includes 1ea. Brass Arm & 2ea. Titan)	Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)	Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)	Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)	Monster Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish	Black, White, Gray, Brown, Green or Burgundy Matte Finish
Gloss and Custom Finish Available	Yes	Yes	Yes	Yes	Yes	Yes
Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware	Choice of Silver, Gold or Black Pinstripe & Matching Hardware
Warranty	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime
Country of Origin	United States	United States	United States	United States	United States	United States
State of Origin	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California	Santa Fe Springs, California
Starting Price 80" x 30" (Frame Depth 5" to 8")	$3,154	$3,832	$4,711	$6,503	$8,284	Min. Size 7'x5' Call for Free Quote
Starting Price 80" x 35" (Frame Depth 5" to 8")	$3,731	$4,244	$5,241	$7,164	$9,068	Min. Size 7'x5' Call for Free Quote
Starting Price 80" x 40" (Frame Depth 5" to 8")	$4,286	$4,775	$5,773	$7,765	$9,887	Min. Size 7'x5' Call for Free Quote
Starting Price 80" x 45" (Frame Depth 5" to 8")	$4,840	$5,200	$6,279	$8,532	$10,677	Min. Size 7'x5' Call for Free Quote

NOTE: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.

Vault Pro, Inc. reserves the right to change or update product specifications, colors and model sizes at anytime.

We Are the Manufacturer
NOBODY BEATS OUR QUALITY OR PRICES!
Free Expert Advice - Call One of Our Vault Pro's

Click images to enlarge.

City skyline

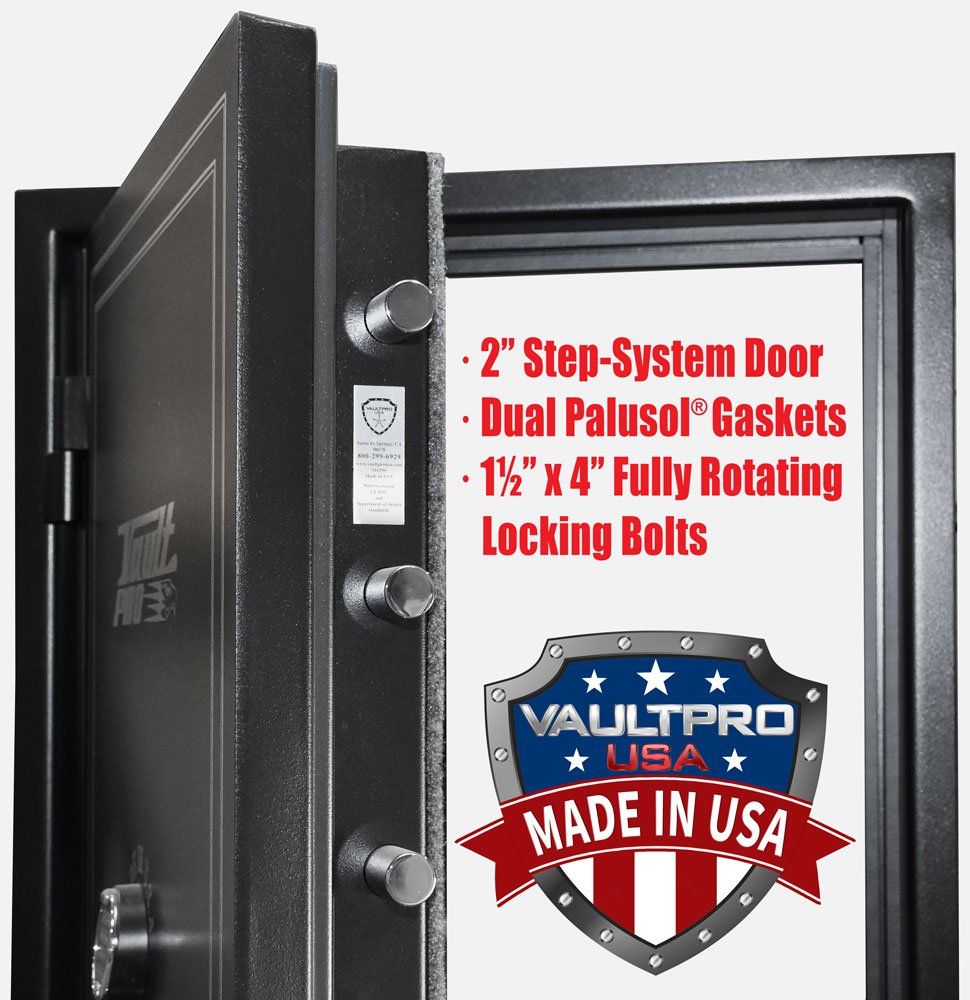

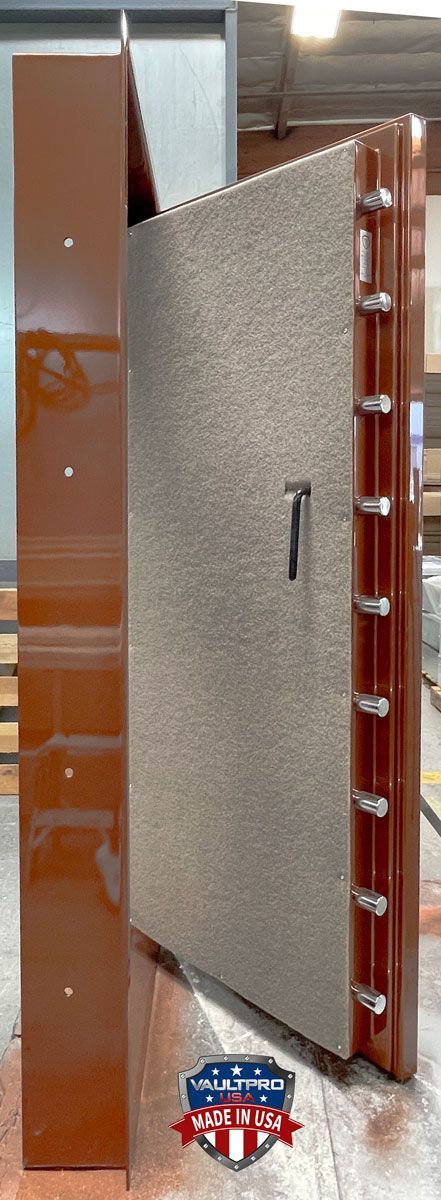

1½" Fully Rotating Locking Bolts

and 2" Step-System Door (Overall door thickness 6¼") Standard on Elite Series.

Button

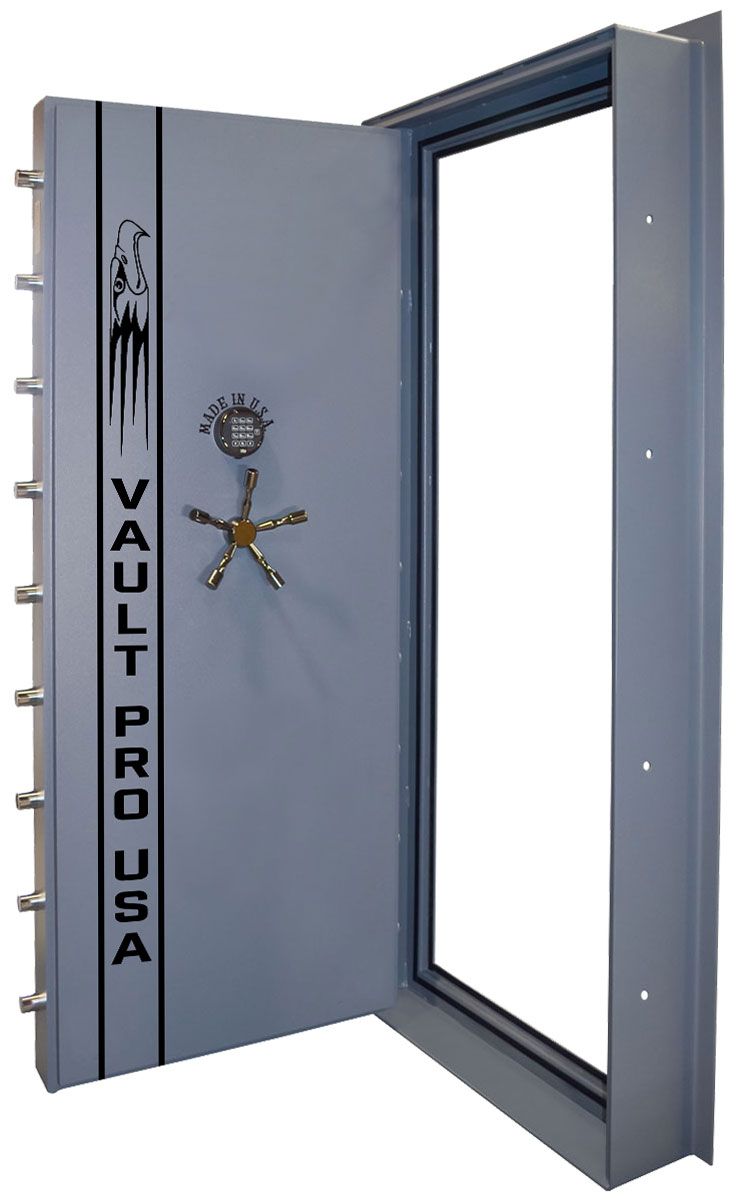

safe room tornado shelter door made in USA

Heavy duty American made vault door with custom paint and digital lock made in USA. Vault doors by Vault Pro USA

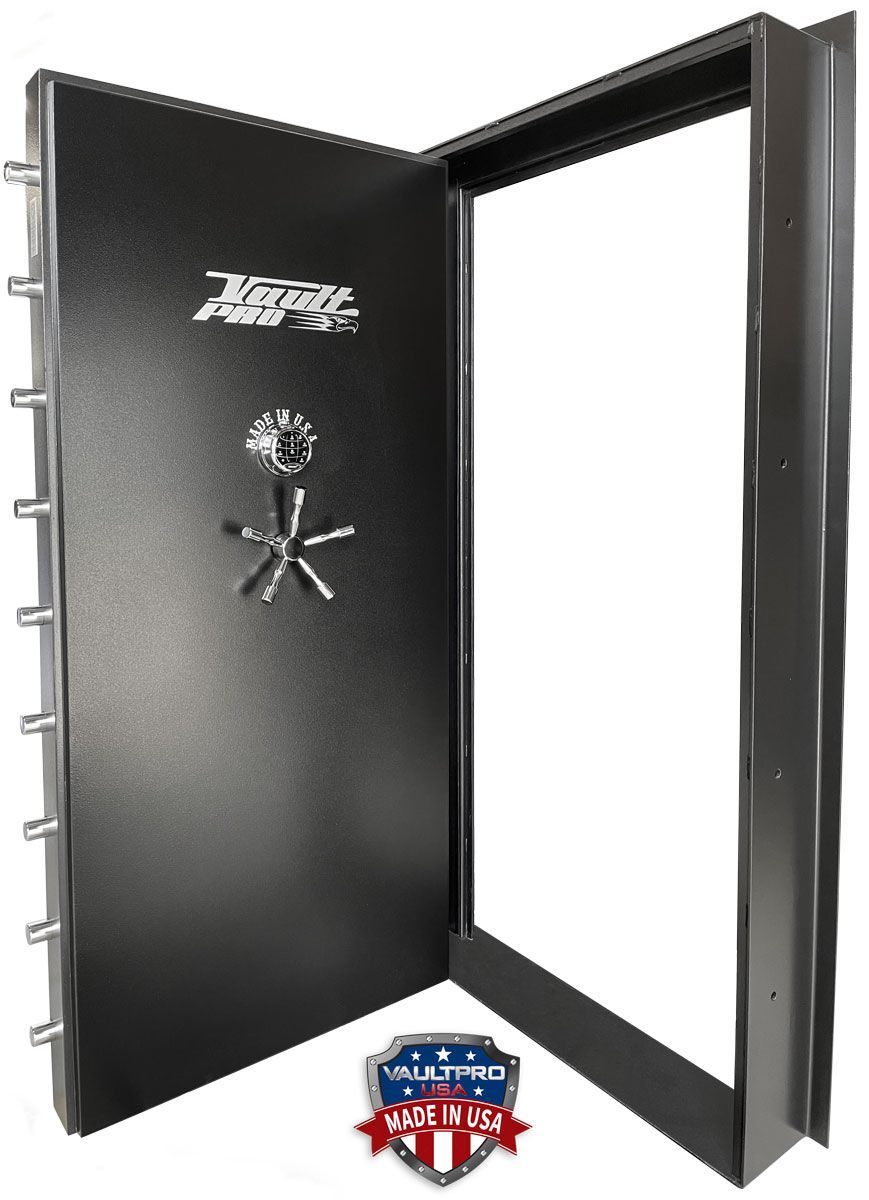

Elite model inswing vault door in black finish. Shown with SafeLogic Xtreme - EMP-Proof Redundant Electromechanical Lock. Vault Doors made in USA by Vault Pro.

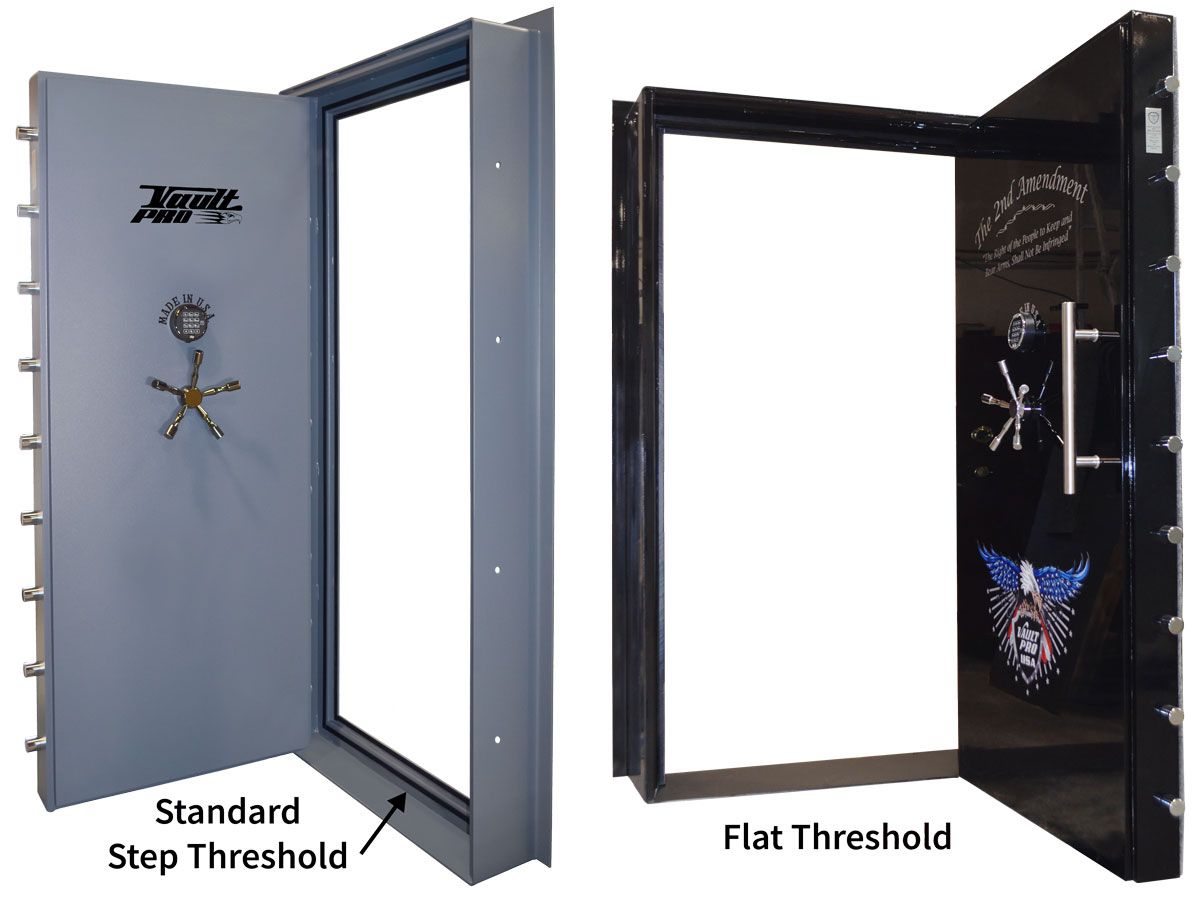

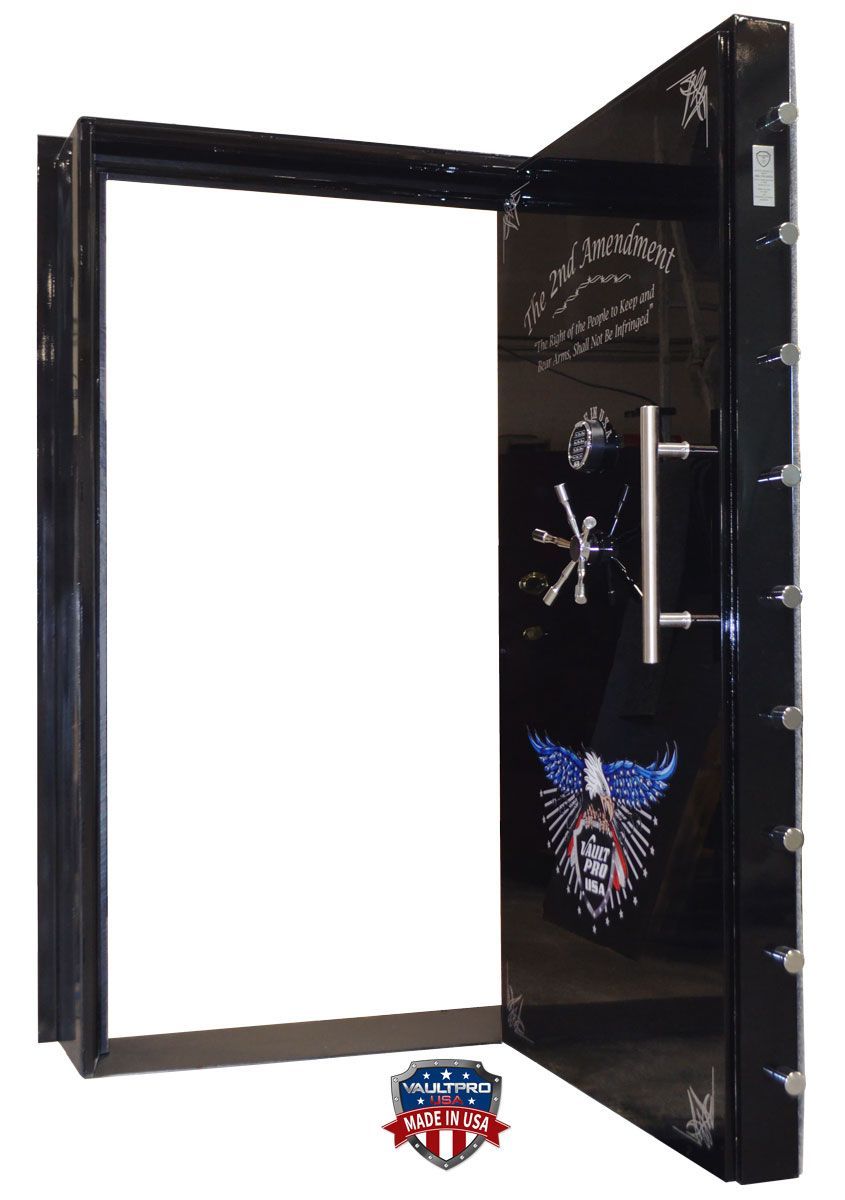

You have the option of the standard step-system threshold or flat threshold on the Elite series door.

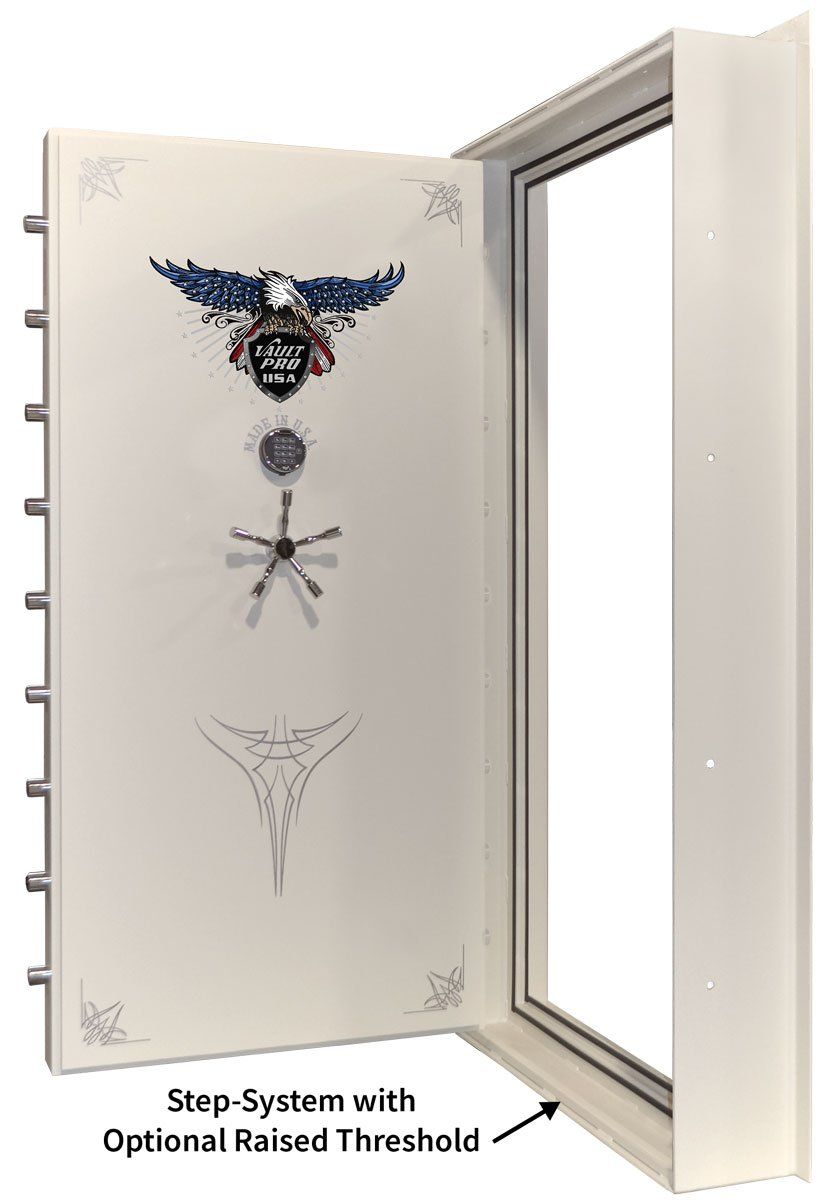

Raised Threshold option to allow proper opening of vault door on raised surface, such as, carpet or wood planking.

COMPARE VAULT PRO ELITE SERIES DOOR with
Browning, Ft. Knox and other vault door manufacturers.

Elite Series Standard Features

Engineered to Exceed FEMA 320& 361, ICC-500
2" Step System Door - Overall Door Thickness 6¼”
2 Hour Fire Door 1550°
Dual Palusol® Gaskets
2300° Ceramic Fire Blanket
1/4" Solid Steel Frame
Adjustable Ball Bearing Hinges
18-Bolt Locking System
Active Bolts 4" x 1½" Fully Rotating
Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock (Digital Lock Available)
1/2" 60+ Rockwell Hard plate
Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Internal Release

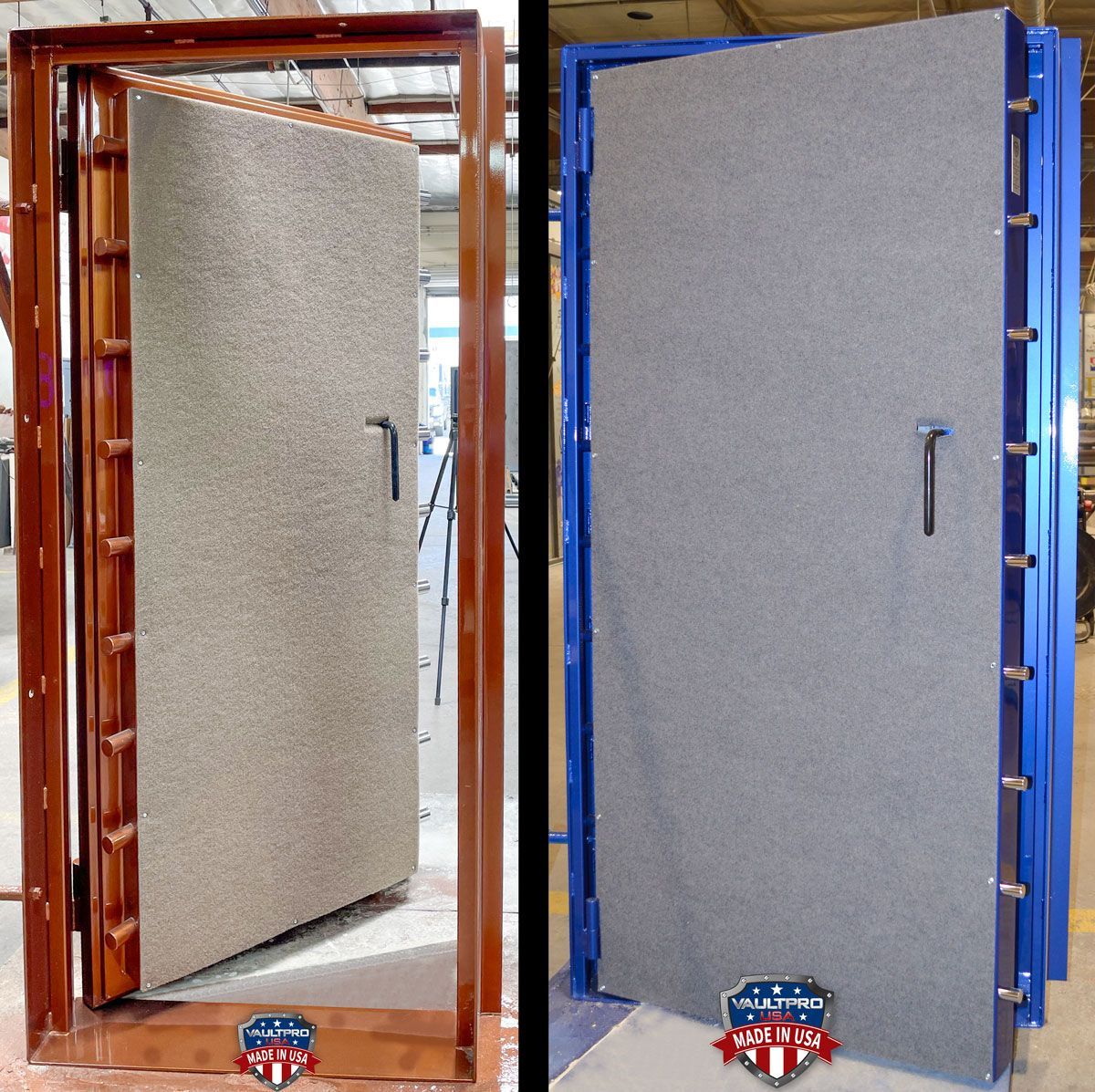

Carpeted Door Panel
Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy. Gloss and Custom Finishes Available - Call: CLICK TO CALL
Choice of Silver, Gold or Black Matching Hardware

Elite Series Vault Door Specifications

Door: 2" Step System Door - Inswing and Outswing Available
Frame Thickness: 1/4" Solid Steel
Fire Rating: 2 Hour - 2300° Ceramic Fire Blanket and multi-layer fire board
Number of Locking Bolts: 18 - 4" x 1½" Locking Bolts. Active Bolts Fully Rotating
Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
Hard Plate: 1/2" Solid 60+ Rockwell Hard Plate
Internal Release: Yes
Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
Gloss and Custom Finish Available: Yes
Hardware: Choice of Silver, Gold or Black Matching Hardware
Warranty: Limited Lifetime

Elite Series Vault Door Factory Direct Pricing

80" x 30" - 6" to 10"

(frame depth)
Weight: 850 lbs.

Clear Thru Space:

25" Out-swing

23" In-Swing

FACTORY DIRECT PRICE

$4711

80" x 35" - 6" to 10"

(frame depth)

Weight: 935 lbs.

Clear Thru Space:

30" Out-swing

28" In-Swing

FACTORY DIRECT PRICE

$5241

80" x 40" - 6" to 10"

(frame depth)
Weight: 1040 lbs.

Clear Thru Space:

35" Out-swing

33" In-Swing

FACTORY DIRECT PRICE

$5773

80" x 45" - 6" to 10"

(frame depth)
Weight: 1130 lbs.

Clear Thru Space:

40" Out-swing

38" In-Swing

ADA Accessible Vault Door

FACTORY DIRECT PRICE

$6279

Minimum frame depth for Elite model Outswing door is 6"

IN-SWING HINGING OPTION (Any Door - Adds up to 200 lbs.) ADD $420

In-Swing frame depth must be 6½" or larger

*Door weights may vary due to frame depth, options and finished dimensions as ordered.

Options and Accessories for Vault Doors

Installation Instructions (PDF opens in new tab)

► Vault Door Installation Instructions

Vault Pro Standard Finishes and Premium Gloss Finishes

Standard Texture Finish
Vault Pro's standard texture finish looks fantastic and provides an exceptional commercial grade protection against corrosion. The finish is a light eggshell texture. Vault Pro offers the textured finish in Black, Brown, Gray, Dark Green and Burgundy with matching hardware in Silver/Chrome, Gold/Gold Handle or Black/Black Chrome.

Standard Black Texture Finish

Button

Gun Safe and Vault Door Colors Standard Brown Texture Finish

Gun Safe and Vault Door Colors Standard Gray Texture Finish

Safe and Vault Door Standard Dark Green Finish

Standard Dark Green Texture Finish

Button

Standard Burgundy Texture Finish

Button

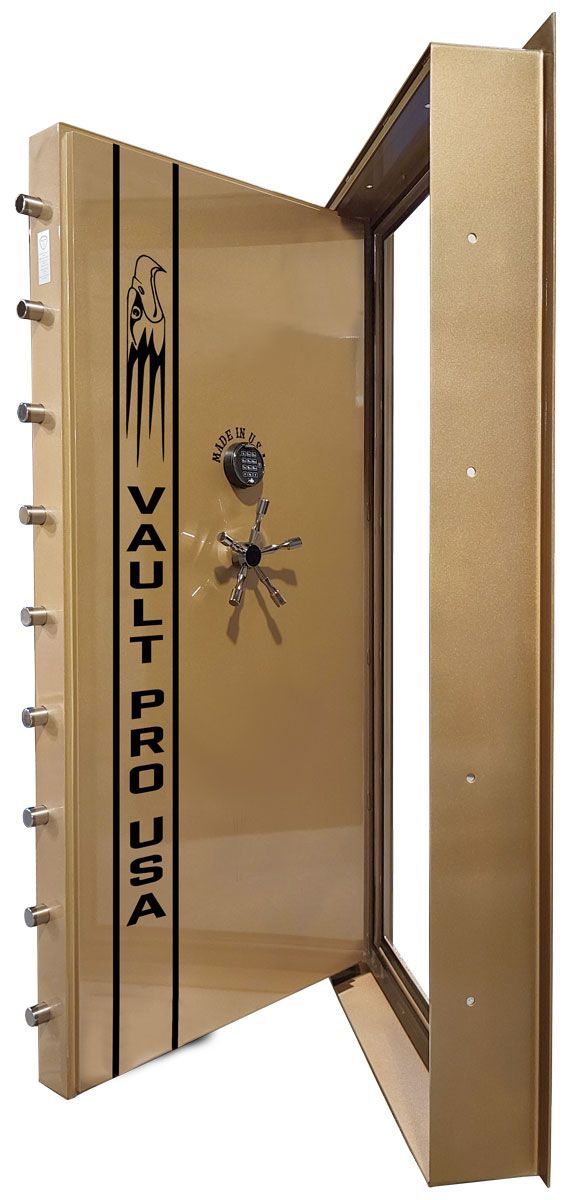

Premium Gloss Finishes

Premium Dual Stage Gloss Finishes are top of the line. Dual stage finishes including base coat (color) and hand polished clear coat, available in a myriad of custom color choices. Premium Gloss Add on Pricing (see table below).
